Centrifugal Force Test  / Spin Test / Burst Test  and Finite Element Analysis
PLB Test Laboratory for Operating Strength GmbH

PLB GmbH Charlottenstr. 98
D-72764 Reutlingen

Tel. +49 7121 490827

Info@PLB-GmbH.de

Fan Wheels

PLB GmbH Impressum

Test bench    Techn. Data

Meas. systems

Download

Breakage at the blade root of an axial flow fan, weak point caused by cavitation shrink holes

Fan wheel destroyed by cenrifugal overload

Fan wheel deformed by centrifugal forces

The maximum operating speed of fan wheels (impellers) is determined by a Centrifugal Force Test.

Test Procedures:



Deformation measurement at a fan wheel

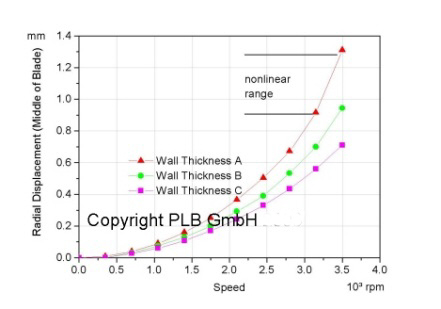

FE Analysis of a fan wheel, parameter: wall thickness (nonlinear material model)

Finite-Element-Analysis of a high-pressure fan wheel
